Selecting the right Eaton NZM circuit breaker is one of the most important decisions in any industrial electrical design. Whether you are specifying switchgear for a data center, a manufacturing line, or a power distribution panel, the wrong breaker frame size or breaking capacity can lead to nuisance tripping, equipment damage, or — in the worst case — catastrophic failure.

This guide walks B2B buyers, panel builders, and electrical engineers through the practical selection workflow for the Eaton Moeller series NZM family of molded case circuit breakers (MCCBs). We will cover the four NZM frame sizes, breaking capacity ratings (Ics / Icu / Icm), trip unit options, and the most common application scenarios encountered in global industrial projects.

1. Why Eaton NZM Is the B2B Industry Default

The Eaton NZM series has been the workhorse of European-style molded case circuit breakers for over two decades. Originally developed by Moeller (now part of Eaton), the NZM family is widely used in IEC 61439-compliant switchgear assemblies across industrial, infrastructure, and renewable energy applications.

Three reasons B2B buyers consistently choose NZM:

• Modular design – four frame sizes (NZM1, NZM2, NZM3, NZM4) cover a 16 A to 1600 A range with shared accessories, reducing spare parts inventory.
• Global IEC / UL certification – suitable for projects that ship to multiple regions, including China, Europe, the Middle East, and Latin America.
• Both thermal-magnetic and electronic trip units – the same frame accepts a TM (thermal-magnetic) or PXR (electronic) trip, allowing one breaker family to cover both basic and sophisticated protection needs.

2. NZM Frame Size Overview

The four NZM frame sizes map to different current ranges and physical dimensions. Choosing the correct frame is the first step in Eaton NZM circuit breaker sizing:

Frame	Current Range	Typical Application
NZM1	16 A – 160 A	Motor branch circuits, small distribution panels
NZM2	125 A – 300 A	Sub-distribution, machine control panels, HVAC feeders
NZM3	250 A – 630 A	Main incoming breakers, large motors, transformers
NZM4	630 A – 1600 A	Main-tie-main, large UPS inputs, generator paralleling

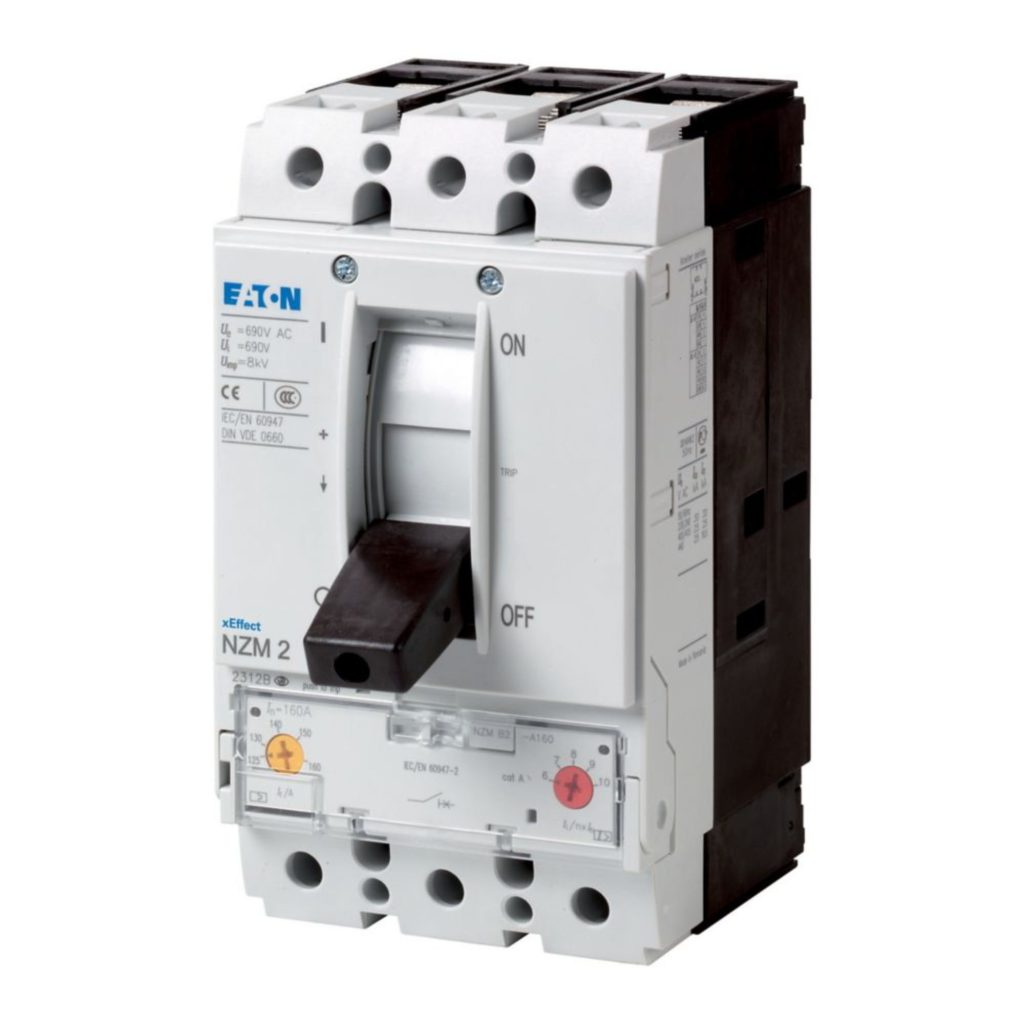

For a typical 250 A industrial feeder — one of the most common B2B inquiries — the NZM2 frame is the right starting point. Popular catalog numbers include NZMN2-A250-BT (250 A, box terminals) and NZMH2-VE160-S1 (electronic trip, 160 A adjustable).

3. Breaking Capacity: Ics, Icu, and Icm Explained

For B2B buyers, breaking capacity is the second most-asked spec after frame size. The Eaton NZM family uses three IEC ratings:

• Icu – ultimate breaking capacity (the maximum fault current the breaker can interrupt once, then must be replaced)
• Ics – service breaking capacity (the maximum fault current the breaker can interrupt three times and remain in service). Most B2B specs require Ics ≥ 50% of Icu.
• Icm – short-circuit making capacity (peak current the breaker can withstand during the first half-cycle)

Typical NZM2 ratings at 400 / 415 V, 50/60 Hz:

Series	Icu	Ics	Application
NZMN2	50 kA	50 kA	Standard industrial, light distribution
NZMH2	150 kA	150 kA	High fault current plants, transformer feeders
NZMS2	85 kA	85 kA	Mid-tier industrial

When in doubt, choose Icu ≥ prospective short-circuit current at the point of installation. For a 250 A circuit fed from a 1.5 MVA transformer, expected fault current typically sits between 25 kA and 40 kA — meaning a 50 kA NZM2 is usually sufficient.

4. Trip Unit Selection: TM vs PXR

Eaton offers two trip unit families on the NZM:

• Thermal-Magnetic (TM) – fixed thermal element (overload) + adjustable magnetic element (short-circuit). Lower cost. Best for straightforward feeder and motor protection.
• PXR electronic trip – microprocessor-based, fully adjustable overload (Ir), short-circuit (Isd), and instantaneous (Ii) settings. Adds features like ground fault, phase imbalance, and Modbus communication.

For B2B projects requiring selective coordination (discrimination) between upstream and downstream breakers, the PXR trip is almost always required. The PXR 20 (premium) and PXR 25 (with arc-flash reduction) are the most common choices for industrial switchgear.

5. Common B2B Sizing Scenarios

Below are three real-world scenarios we see most often from B2B buyers sourcing Eaton NZM molded case circuit breakers:

Scenario A: 250 A Sub-Distribution Feeder

Recommendation: NZMN2-A250-BT (250 A, 50 kA, TM trip, box terminals). Suitable for panels feeding HVAC, lighting, and small motor loads.

Scenario B: 630 A Main Incoming Breaker with Selective Coordination

Recommendation: NZMH3-4-VE630-AVE (electronic trip, 85 kA, 4-pole, adjustable settings). Use PXR 25 trip for arc-flash reduction and Modbus monitoring.

Scenario C: 1600 A Main-Tie-Main Configuration

Recommendation: Two NZMN4-4-A1600 units with PXR trip, mechanical interlock, and motor operator. The NZM4 frame handles the full 1600 A continuous current and the high short-circuit levels of large transformers.

6. Where to Source Eaton NZM in China

For B2B buyers outside China — and many inside — sourcing Eaton NZM directly through an authorized channel partner eliminates the risk of counterfeit components, dropship stock-outs, and warranty voids. The Eaton Moeller series NZM is widely used in projects shipped to Southeast Asia, the Middle East, Africa, and South America, where IEC 61439 compliance is mandatory.

When evaluating a Chinese Eaton supplier, B2B buyers should check:

• Whether the supplier is an Eaton authorized channel partner (not a third-party reseller)
• The supplier’s ability to provide authentic stock with traceable batch / serial numbers
• Whether they can ship internationally with the correct export documentation
• Whether they offer technical support for panel builders in the destination market

Our team at eatonty.com provides B2B procurement support for the full Eaton Moeller series NZM family, with technical datasheets, breaking-capacity comparisons, and application guidance for international industrial projects. Browse the complete Eaton NZM circuit breaker catalog to see current stock, or request a wholesale quotation for project pricing.

7. Frequently Asked Questions

What is the difference between Eaton NZM and FAZ?

FAZ is the miniature circuit breaker (MCB) family, designed for DIN-rail mounting in final distribution and typically rated up to 63 A. NZM is the molded case circuit breaker (MCCB) family, designed for higher currents (16 A to 1600 A) and used as main or sub-main breakers in switchgear assemblies.

Can I substitute NZM2 for NZM3?

Only if the breaking capacity, current rating, and physical mounting dimensions match. The NZM2 and NZM3 have different frame sizes and do not share accessories, so a substitution usually requires redesigning the panel cutout.

What is the typical lead time for Eaton NZM?

For common catalog numbers (e.g. NZMN2-A250-BT, NZMH2-VE160-S1), stock is usually available in 2–4 weeks for international orders. Less common electronic trip configurations may take 6–8 weeks.

Do NZM breakers ship with or without a trip unit?

Most NZM catalog numbers include the trip unit in the same SKU. The exception is the NZM…-XK… series, which ships as a frame only and accepts a separate PXR trip unit.

Conclusion

The Eaton NZM circuit breaker family remains the most reliable choice for IEC 61439-compliant industrial switchgear. By following the selection workflow — choose the right frame, confirm breaking capacity (Ics ≥ 50% Icu), select the appropriate trip unit, and verify the accessories — B2B buyers can ensure their projects are properly protected, properly documented, and ready for global deployment.

For project quotations, technical datasheets, or B2B volume pricing on the Eaton Moeller NZM series, contact our team or browse the full NZM product catalog online.
