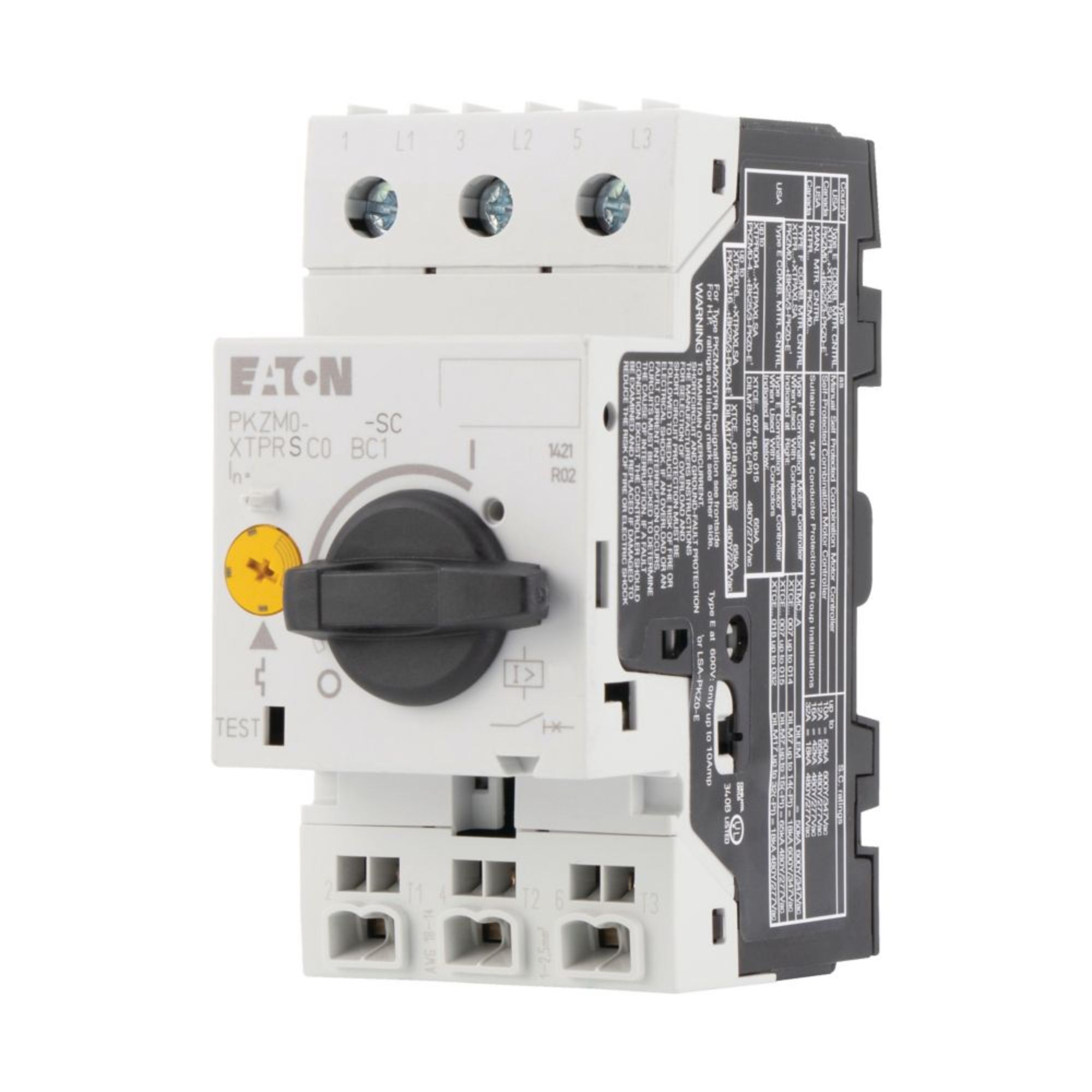

Product: Eaton Moeller® series PKZM0 Motor-protective circuit-breaker
Description: Eaton Moeller® series PKZM0 Motor-protective circuit-breaker, 0.09 kW, 0.25 – 0.4 A, Screw terminals on feed side/spring-cage terminals on output side
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | PKZM0-0,4-SC |
| Catalog Number | 229830 |
| Global Catalog | 229830 |
| EAN / GTIN-13 | 4015082298302 |
| Length | 76.0 mm |
| Height | 93.0 mm |
| Width | 45.0 mm |
| Weight | 0.244 kg |
| Rated Operational Current (In) | 0.4 A |
| Number of Poles | Three-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | Terminals: IP00 IP20 |
| Mechanical Lifespan | 100,000 Operations (Main conducting paths) |
| Electrical Lifespan | 100,000 operations (at 400V, AC-3) |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 55 °C |
| Connection Type | Screw-/spring clamp connection |
| Functions | Motor protection Phase failure sensitive |
| Compliances | CE Marked |
| Certifications | CSA Std. C22.2 No. 14 IEC 60947-4-1 UL 508 VDE CSA Class No.: 3211-05 IEC/EN 60947 UL UL File No.: E36332 IEC/EN 60947-4-1 CE CSA File No.: 165628 CSA-C22.2 No. 60947-4-1-14 UL 60947-4-1 UL Category Control No.: NLRV CSA VDE 0660 |
| Operating Frequency | 40 Operations/h |
| Power Loss | 5.22 W |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
