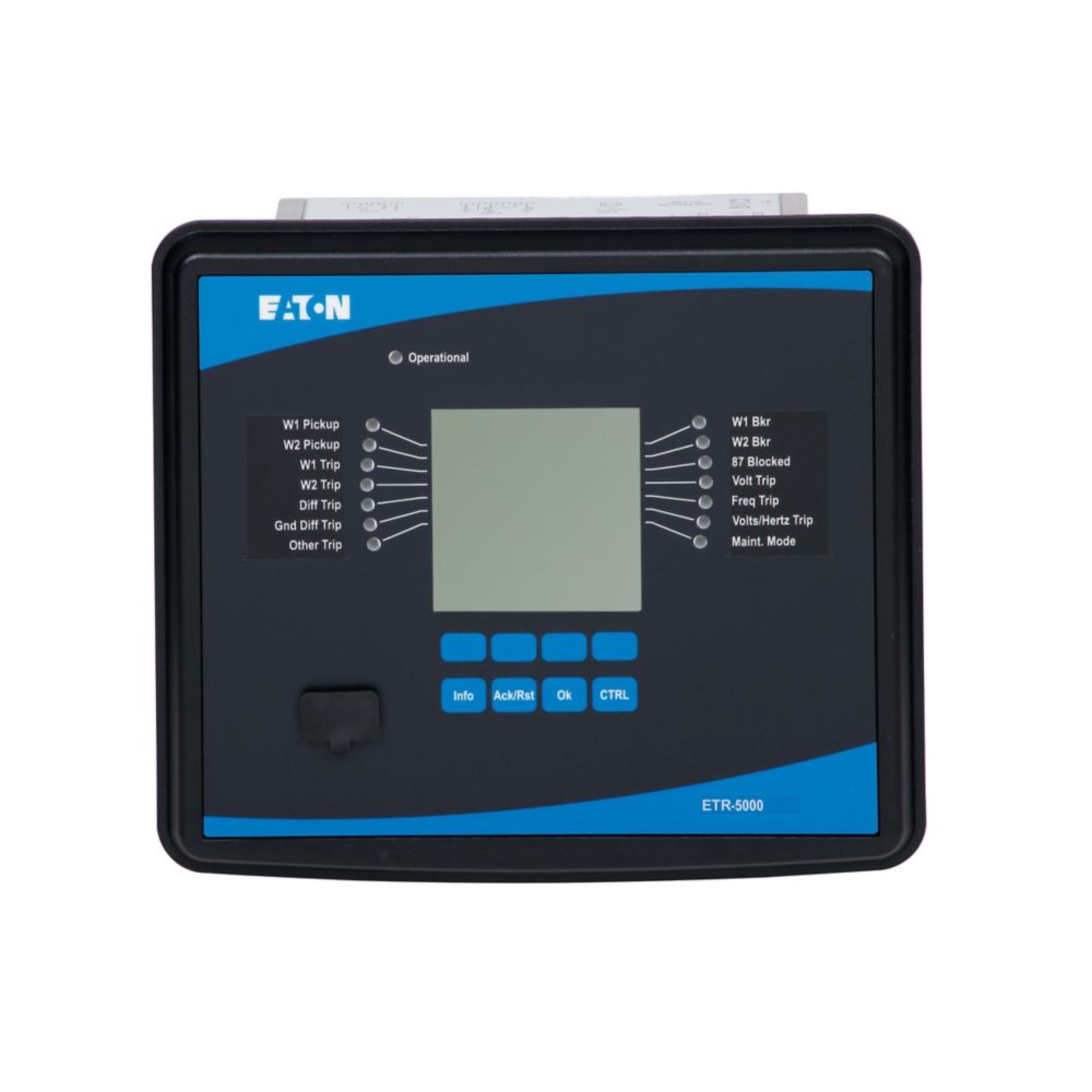

Product: Eaton transformer relay
Description: Eaton Transformer Protection Relay, ETR-5000, 8 inputs, 9 outputs, Removable term., 5A/1A PC, W1/W2 – 5A/1A GC, 40-250 Vac, 19-300 Vdc, Modbus-RTU + Modbus-TCP, Projection mount, 2 Al + 2AO, 1 zone interlock, URTD interface IRIG-B
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Catalog Number | ETR-5000B0IA1 |
| UPC | 786685553382 |
| Length | 204.7 mm |
| Height | 221.0 mm |
| Width | 246.9 mm |
| Weight | 4.2 kg |
| Special Features | 2 Al + 2AO, 1 zone interlocking, URTD interface IRIG-B |
| Compliances | CE Marked |
| Certifications | CSA Std. C22.2 No. 14-95 | UL 508 | ANSI/IEEE Std C37.78 |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
