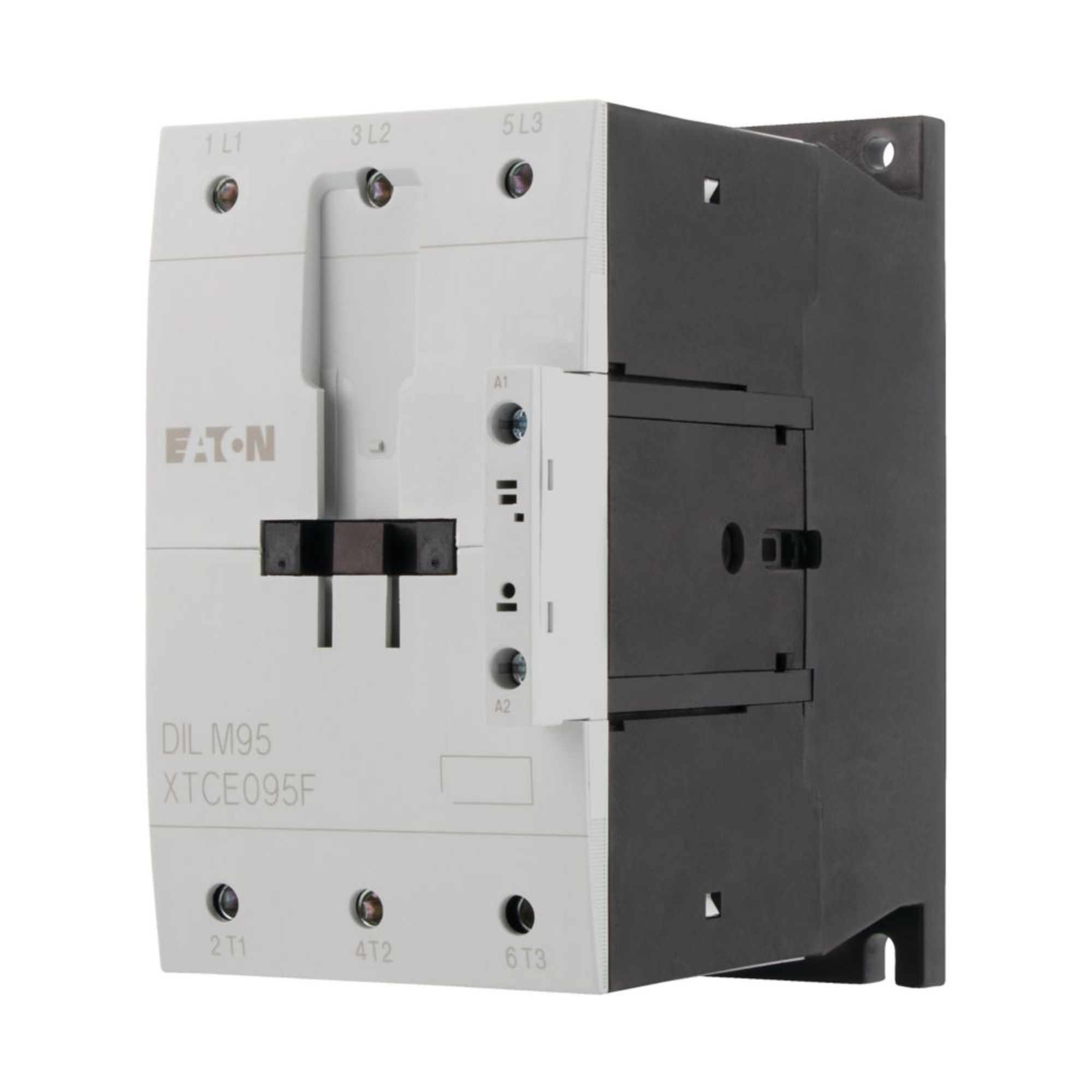

Product: Eaton Moeller® series DILM contactor
Description: Eaton Moeller® series DILM Contactor, 3 pole, 380 V 400 V 45 kW, *V 50 Hz, AC operation, Screw terminals
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | DILM95(*V50HZ) |
| Catalog Number | 239504 |
| Length | 160.0 mm |
| Height | 170.0 mm |
| Width | 90.0 mm |
| Weight | 2.18 kg |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Current (In) | 95 A |
| Number of Poles | Three-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | IP00 |
| Utilization Category | AC-3: Normal AC induction motors: starting, switch off during running | AC-1: Non-inductive or slightly inductive loads, resistance furnaces | AC-4: Normal AC induction motors: starting, plugging, reversing, inching |
| Mechanical Lifespan | 10,000,000 Operations (AC operated) |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 60 °C |
| Application | Contactors for Motors |
| Certifications | CE | CSA | UL Category Control No.: NLDX | CSA Class No.: 2411-03, 3211-04 | IEC/EN 60947-4-1 | UL | CSA File No.: 012528 | CSA-C22.2 No. 60947-4-1-14 | IEC/EN 60947 | UL 60947-4-1 | UL File No.: E29096 | VDE 0660 |
| Operating Frequency | 3600 mechanical Operations/h (AC operated) |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
