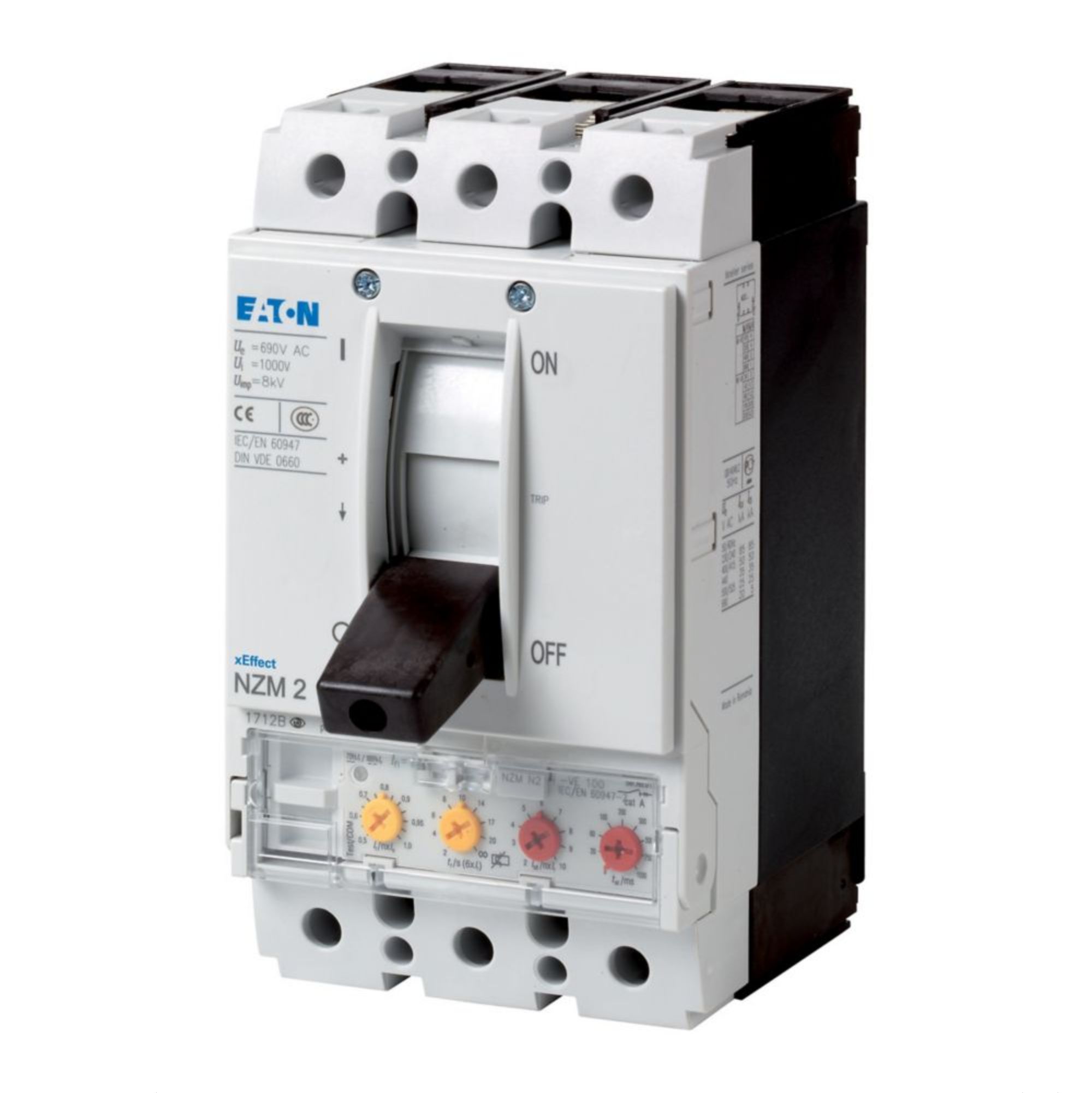

Product: Eaton Moeller series NZM molded case circuit breaker electronic
Description: Eaton Moeller series NZM – Molded Case Circuit Breaker. Circuit-breaker, 3p, 160 A, 1000 V, VE160-S1
đź“‹ Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | NZMH2-VE160-S1 |
| Catalog Number | 100778 |
| Global Catalog | 100778 |
| EAN / GTIN-13 | 4015081006786 |
| Length | 149.0 mm |
| Height | 184.0 mm |
| Width | 105.0 mm |
| Weight | 2.46 kg |
| Amperage Rating | 160 A |
| Voltage Rating (AC) | 1000 V – 1000 V |
| Rated Insulation Voltage (Ui) | 1000 V AC |
| Rated Operational Current (In) | 160 A |
| Number of Poles | Three-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | IP20 |
| Release System | Electronic release |
| Utilization Category | A |
| Overload Setting (Ir) — min | 80 A |
| Overload Setting (Ir) — max | 160 A |
| Instantaneous Setting (Ii) — min | 1920 A |
| Instantaneous Setting (Ii) — max | 1920 A |
| Short-circuit Release — min | 1920 A |
| Short-circuit Release — max | 1920 A |
| Short-time Withstand 0.3s | 1.9 kA |
| Short-time Withstand 1s | 1.9 kA |
| Ics @ 230 V | 150 kA |
| Ics @ 400/415 V | 150 kA |
| Ics @ 440 V | 130 kA |
| Ics @ 525 V | 37.5 kA |
| Ics @ 690 V | 5 kA |
| Icm @ 400/415 V | 330 kA |
| Icm @ 440 V | 286 kA |
| Icm @ 525 V | 105 kA |
| Icm @ 690 V | 40 kA |
| Uimp (main) | 8000 V |
| Uimp (auxiliary) | 6000 V |
| Mechanical Lifespan | 20000 operations |
| Electrical Lifespan | 3000 operations at 1000 V AC-1 |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 70 °C |
| Standard Terminals | Screw terminal |
| Connection Type | Screw connection |
| Frame Type | NZM2 |
| Handle Type | Rocker lever |
| Mounting Method | DIN rail (top hat rail) mounting optional Built-in device fixed built-in technique Fixed |
| Functions | Systems, cable, selectivity and generator protection |
| Special Features | Lifespan, mechanical: of which max. 50 % trip by shunt/undervoltage releaseR.m.s. value measurement and “thermal memory”adjustable time delay setting to overcome current peaks tr: 2 – 20 s at 6 x Ir also infinity (without overload releases)Adjustable delay time tsd: Steps: 0, 20, 60, 100, 200, 300, 500, 750, 1000 msi²t constant function: fixed OFFNZM…S1 terminal type: NZM…XKSA cover requiredRated current = rated uninterrupted current: 160 ATerminal capacity hint: Up to 240 mm² can be connected depending on the cable manufacturer. |
| Compliances | RoHS conform |
| Certifications | IEC |
| Power Loss | 21.12 W |
