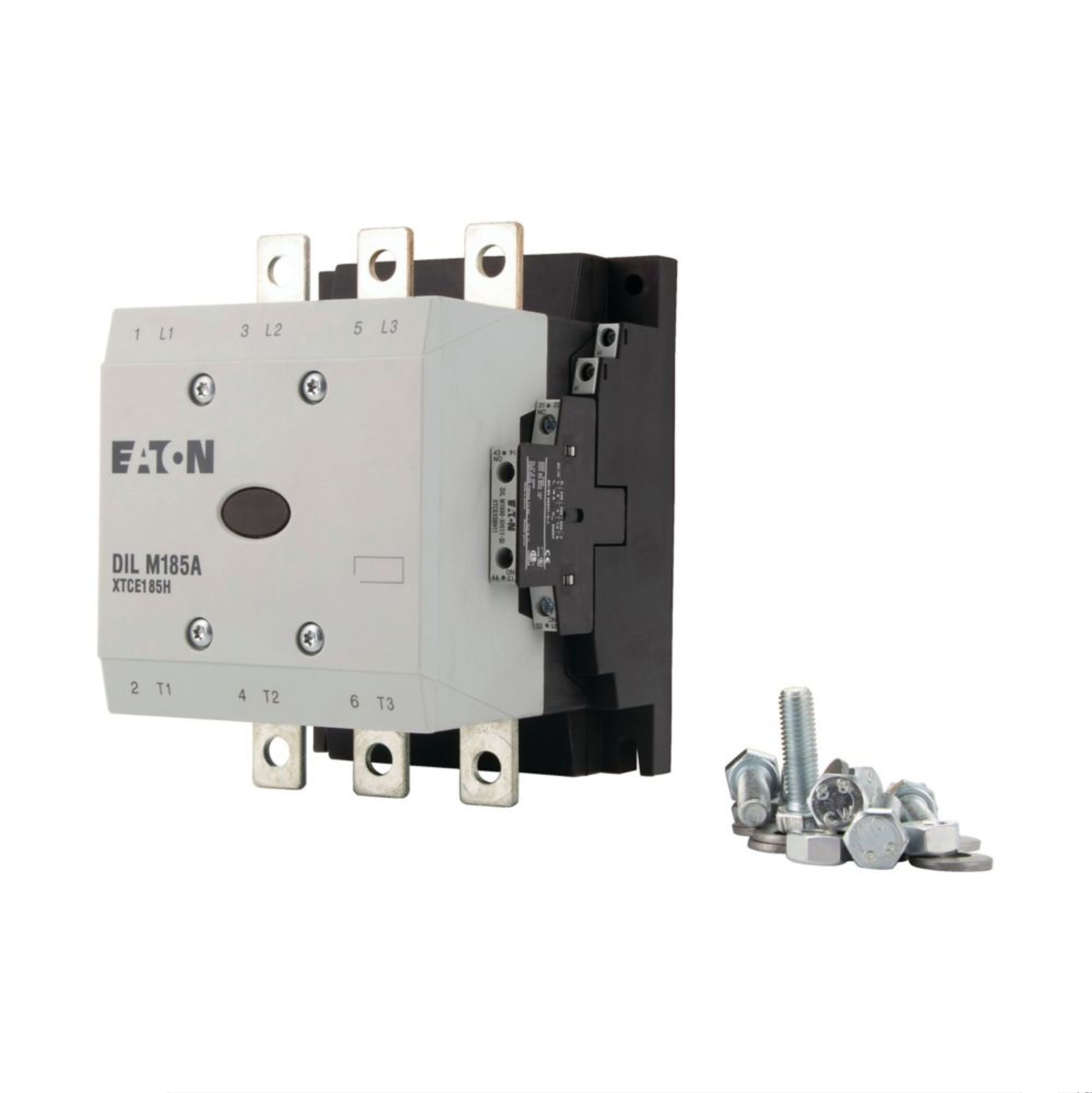

Product: Eaton Moeller® series DILM Contactor
Description: Eaton Moeller® series DILM Contactor, 380 V 400 V 90 kW, 2 N/O, 2 NC, RAC 500: 480 – 500 V 50/60 Hz, AC operation, Screw connection
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | DILM185A/22(RAC500) |
| Catalog Number | 139539 |
| Global Catalog | 139539 |
| EAN / GTIN-13 | 4015081363179 |
| Length | 158.0 mm |
| Height | 190.0 mm |
| Width | 140.0 mm |
| Weight | 3.54 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (In) | 185 A |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | IP00 |
| Utilization Category | AC-3: Normal AC induction motors: starting, switch off during running | AC-1: Non-inductive or slightly inductive loads, resistance furnaces | AC-4: Normal AC induction motors: starting, plugging, reversing, inching |
| Mechanical Lifespan | 10,000,000 Operations (AC operated) |
| Electrical Lifespan | 100,000 Operations (at Condensor operation) |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 60 °C |
| Connection Type | Rail connection |
| Application | Contactors for Motors |
| Certifications | IEC/EN 60947 | UL 60947-4-1 | CSA File No.: 2389068 | CE | CSA-C22.2 No. 60947-4-1-14 | IEC/EN 60947-4-1 | CSA | UL Category Control No.: NLDX | VDE 0660 | UL File No.: E29096 | CSA Class No.: 3211-04 | UL |
| Operating Frequency | 200 Operations/h | 3000 mechanical Operations/h (AC operated) |
