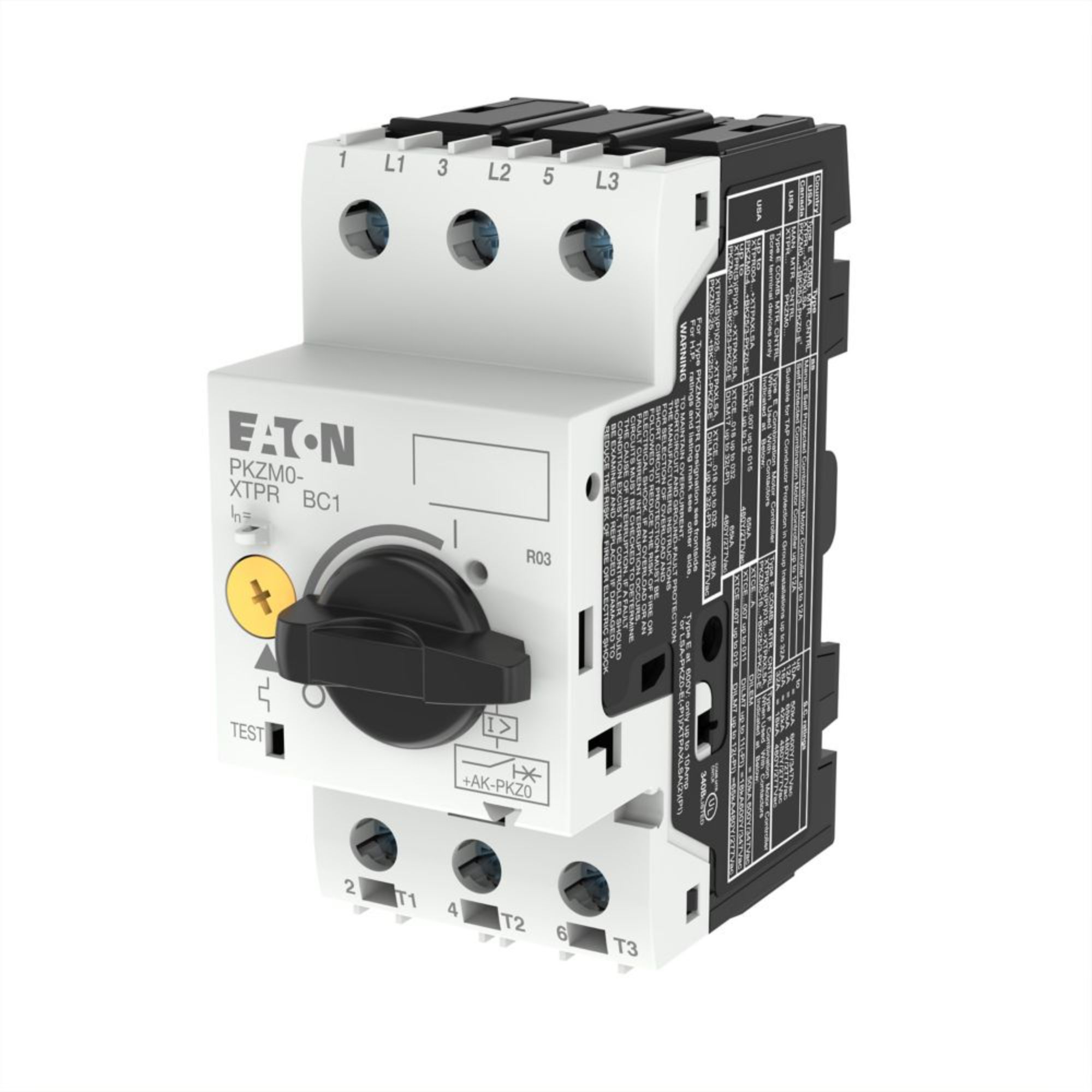

Product: Eaton Moeller® series PKZM0 Motor-protective circuit-breaker
Description: Eaton Moeller® series PKZM0 Motor-protective circuit-breaker, 12.5 kW, 20 – 25 A, Screw terminals
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | PKZM0-25 |
| Catalog Number | 046989 |
| Global Catalog | 046989 |
| EAN / GTIN-13 | 4015080469896 |
| Length | 76.0 mm |
| Height | 93.0 mm |
| Width | 45.0 mm |
| Weight | 0.294 kg |
| Rated Operational Current (In) | 25 A |
| Number of Poles | Three-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | Terminals: IP00 | IP20 |
| Mechanical Lifespan | 100,000 Operations |
| Electrical Lifespan | 100,000 operations |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 55 °C |
| Connection Type | Screw connection |
| Functions | Motor protection | Phase failure sensitive |
| Certifications | CSA Class No.: 3211-05 | CSA-C22.2 No. 60947-4-1-14 | UL File No.: E36332 | VDE 0660 | CE | CSA | IEC/EN 60947 | IEC/EN 60947-4-1 | UL 60947-4-1 | UL | UL Category Control No.: NLRV | CSA File No.: 165628 |
| Operating Frequency | 40 Operations/h |
| Power Loss | 7.04 W |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
