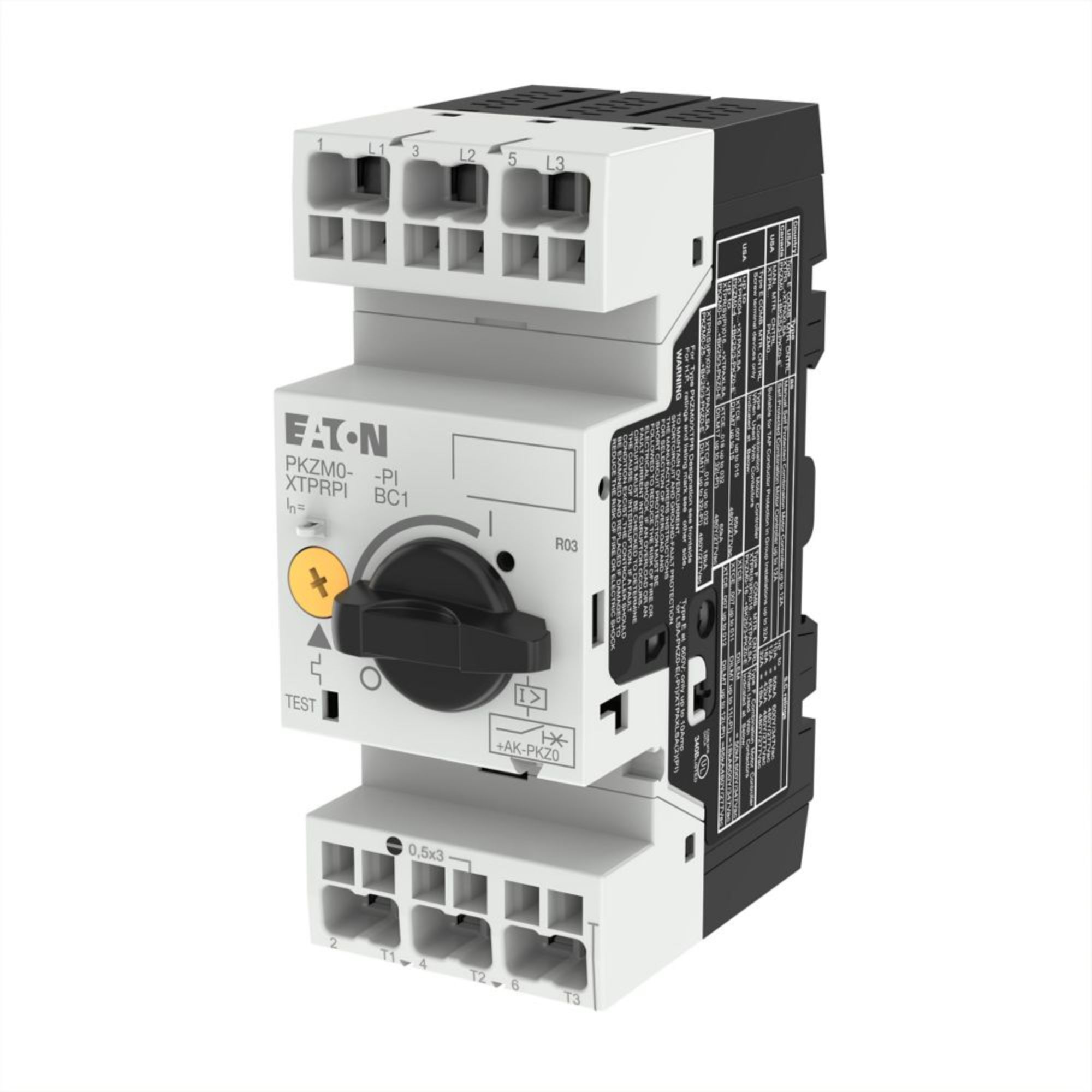

Product: Eaton Moeller® series PKZM0 Motor-protective circuit-breaker
Description: Eaton Moeller® series PKZM0 Motor-protective circuit-breaker, 12.5 kW, 20 – 25 A, Push in terminals
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | PKZM0-25-PI |
| Catalog Number | 199161 |
| Global Catalog | 199161 |
| EAN / GTIN-13 | 4015081972456 |
| Length | 75.0 mm |
| Height | 109.0 mm |
| Width | 45.0 mm |
| Weight | 0.347 kg |
| Rated Operational Current (In) | 25 A |
| Number of Poles | Three-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | IP20 |
| Mechanical Lifespan | 100,000 Operations |
| Electrical Lifespan | 100,000 operations |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 55 °C |
| Connection Type | Spring clamp connection |
| Mounting Method | DIN rail (top hat rail) mounting optional |
| Functions | Motor protection Phase failure sensitive |
| Certifications | IEC/EN 60947 VDE 0660 UL CSA IEC/EN 60947-4-1 UL 60947-4-1 CSA-C22.2 No. 60947-4-1-14 CE UL File No.: E36332 UL Category Control No.: NLRV CSA File No.: 165628 CSA Class No.: 3211-05 |
| Operating Frequency | 40 Operations/h |
| Power Loss | 7.04 W |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
