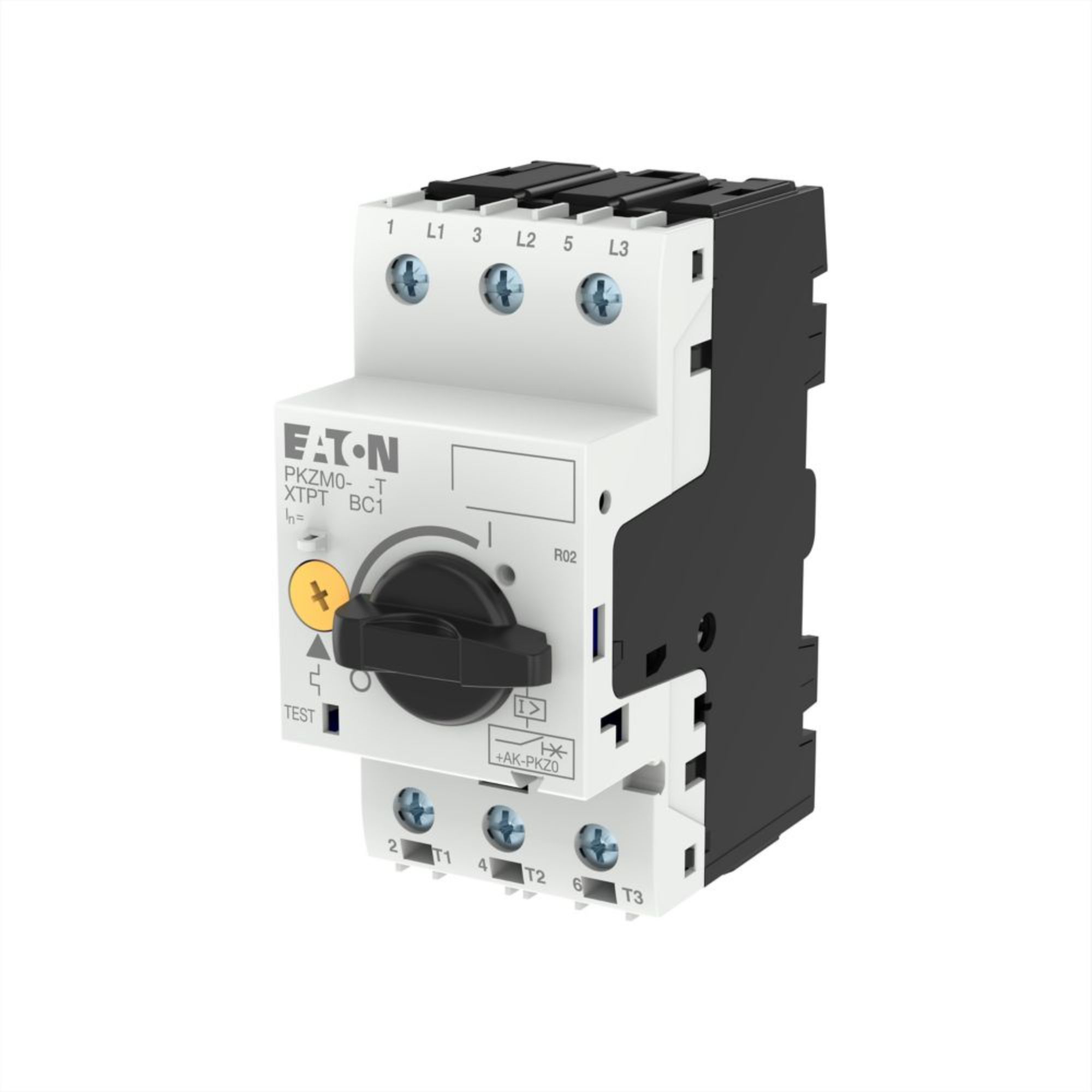

Product: Eaton Moeller® series PKZM0 Transformer-protective circuit-breaker
Description: Eaton Moeller® series PKZM0 Transformer-protective circuit-breaker, 3p, Ir=16-20A, screw connection
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | PKZM0-20-T |
| Catalog Number | 088918 |
| Global Catalog | 088918 |
| EAN / GTIN-13 | 4015080889182 |
| Length | 76.0 mm |
| Height | 93.0 mm |
| Width | 45.0 mm |
| Weight | 0.294 kg |
| Rated Operational Current (In) | 20 A |
| Number of Poles | Three-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | Terminals: IP00 | IP20 |
| Mechanical Lifespan | 100,000 Operations |
| Electrical Lifespan | 100,000 operations |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 55 °C |
| Connection Type | Screw connection |
| Mounting Method | DIN rail (top hat rail) mounting optional |
| Functions | For the protection of transformers with a high inrush current | Transformer protection |
| Certifications | IEC/EN 60947 | VDE 0660 | CE | UL | CSA | IEC/EN 60947-4-1 | CSA Class No.: 3211-05 | CSA File No.: 165628 | CSA-C22.2 No. 60947-4-1-14 | UL 60947-4-1 | UL Category Control No.: NLRV | UL File No.: E36332 |
| Operating Frequency | 40 Operations/h |
| Power Loss | 5.68 W |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
