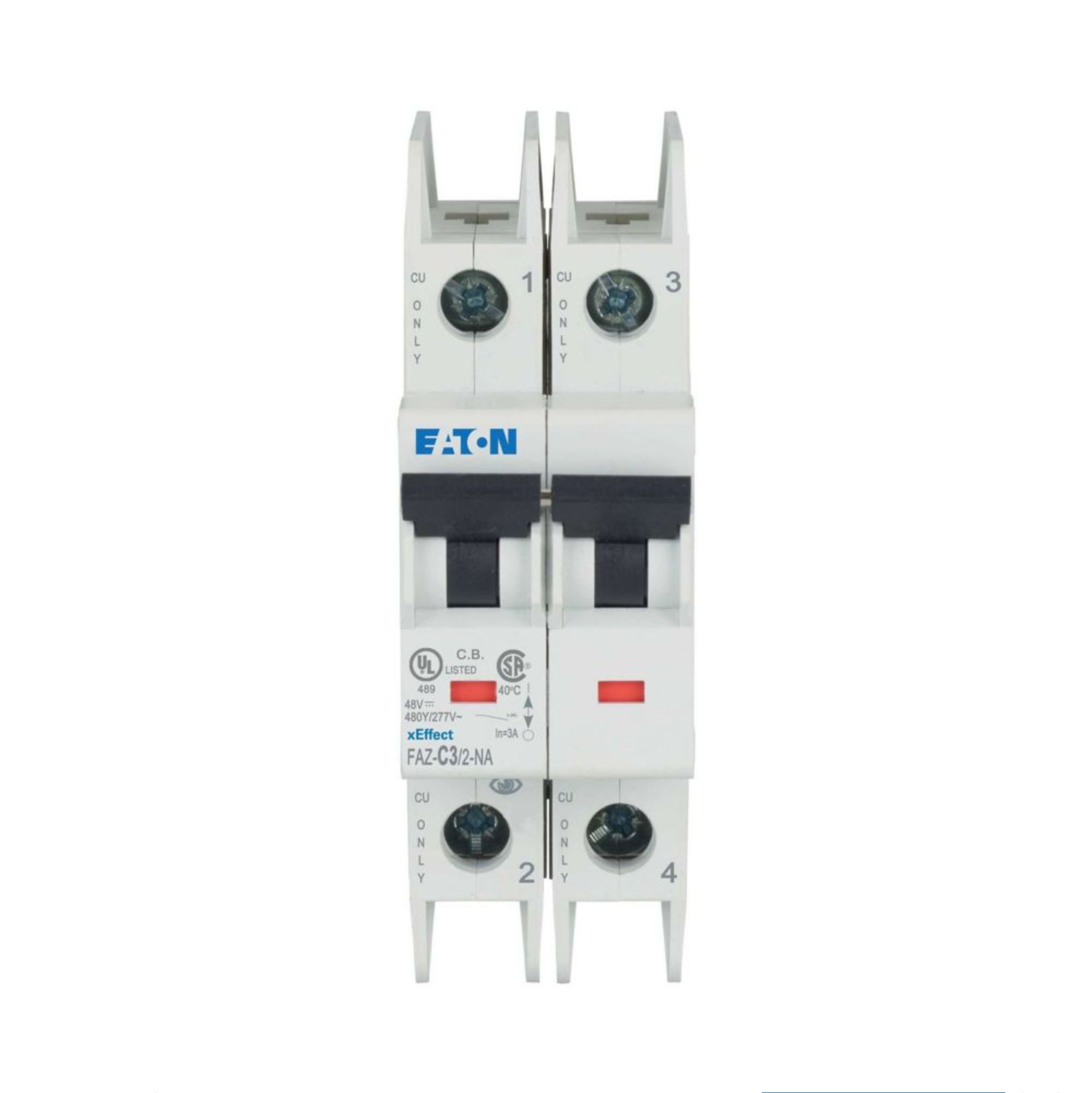

Product: Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB
Description: Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB. FAZ-NA, 2-pole, tripping characteristic: C, rated current In: 3 A, Switchgear for export to North America (UL-listed)
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | FAZ-C3/2-NA |
| Catalog Number | 102161 |
| Global Catalog | 102161 |
| EAN / GTIN-13 | 4015081020379 |
| Length | 105.0 mm |
| Height | 75.5 mm |
| Width | 35.4 mm |
| Weight | 0.246 kg |
| Amperage Rating | 3 A |
| Voltage Rating (AC) | 277 V AC / 480 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Operational Current (In) | 3 A |
| Number of Poles | Two-pole |
| Pollution Degree | 2 |
| Overvoltage Category | III |
| Degree of Protection | IP40 (when fitted) UL/CSA Type: – IP20 IP20 (IEC) |
| Electrical Lifespan | 20000 operations |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 75 °C |
| Mounting Method | Top-hat rail IEC/EN 60715 |
| Application | Feeder circuits, branch circuitsSwitchgear for export to North America (UL-listed) |
| Functions | Current limiting circuit breaker |
| Special Features | Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity |
| Compliances | RoHS conform |
| Certifications | CSA (Class No. 1432-01) IEC/EN 60947-2 UL 489, CSA C22.2 No. 5 IEC 60947-2 UL 489 CE marking CSA-C22.2 No. 5-09 UL (Category Control Number DIVQ) CSA (File No. 204453) North America (UL listed, CSA certified) UL (File No. E235139) Specially designed for North America, suitable as BCPD EN45545-2 IEC 61373 |
| Power Loss | 2.4 W |
