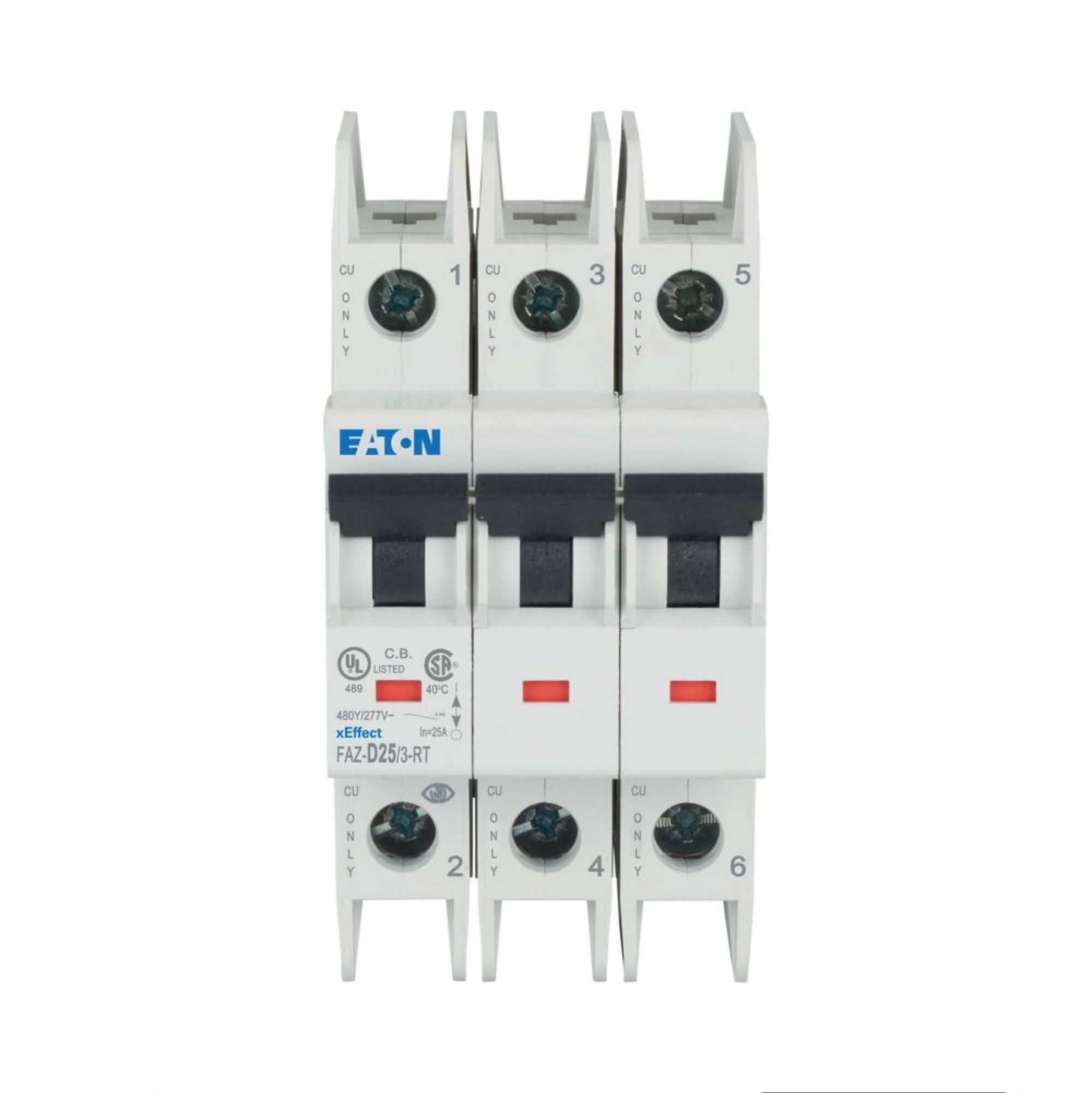

Product: Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB
Description: Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB. FAZ-RT, 3-pole, tripping characteristic: D, rated current In: 25 A
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | FAZ-D25/3-RT |
| Catalog Number | 102312 |
| Global Catalog | 102312 |
| EAN / GTIN-13 | 4015081021888 |
| Length | 105.0 mm |
| Height | 75.5 mm |
| Width | 53.1 mm |
| Weight | 0.385 kg |
| Amperage Rating | 25 A |
| Voltage Rating (AC) | 277 V AC / 480 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Operational Current (In) | 25 A |
| Number of Poles | Three-pole |
| Pollution Degree | 2 |
| Overvoltage Category | III |
| Degree of Protection | UL/CSA Type: – IP20 (IEC) IP40 (when fitted) IP20 |
| Electrical Lifespan | 20000 operations |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 75 °C |
| Mounting Method | Top-hat rail IEC/EN 60715 |
| Application | Feeder circuits, branch circuitsSwitchgear for industrial and advanced commercial applicationsxEffect – Switchgear for industrial and advanced commercial applications |
| Functions | Current limiting circuit breaker |
| Special Features | Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity |
| Compliances | RoHS conform |
| Certifications | UL 489 North America (UL listed, CSA certified) Specially designed for North America, suitable as BCPD CSA (File No. 204453) CSA (Class No. 1432-01) UL (File No. E235139) CE marking CSA-C22.2 No. 5-09 IEC/EN 60947-2 UL 489, CSA C22.2 No. 5 IEC 60947-2 UL (Category Control Number DIVQ) EN45545-2 IEC 61373 |
| Power Loss | 7.5 W |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
