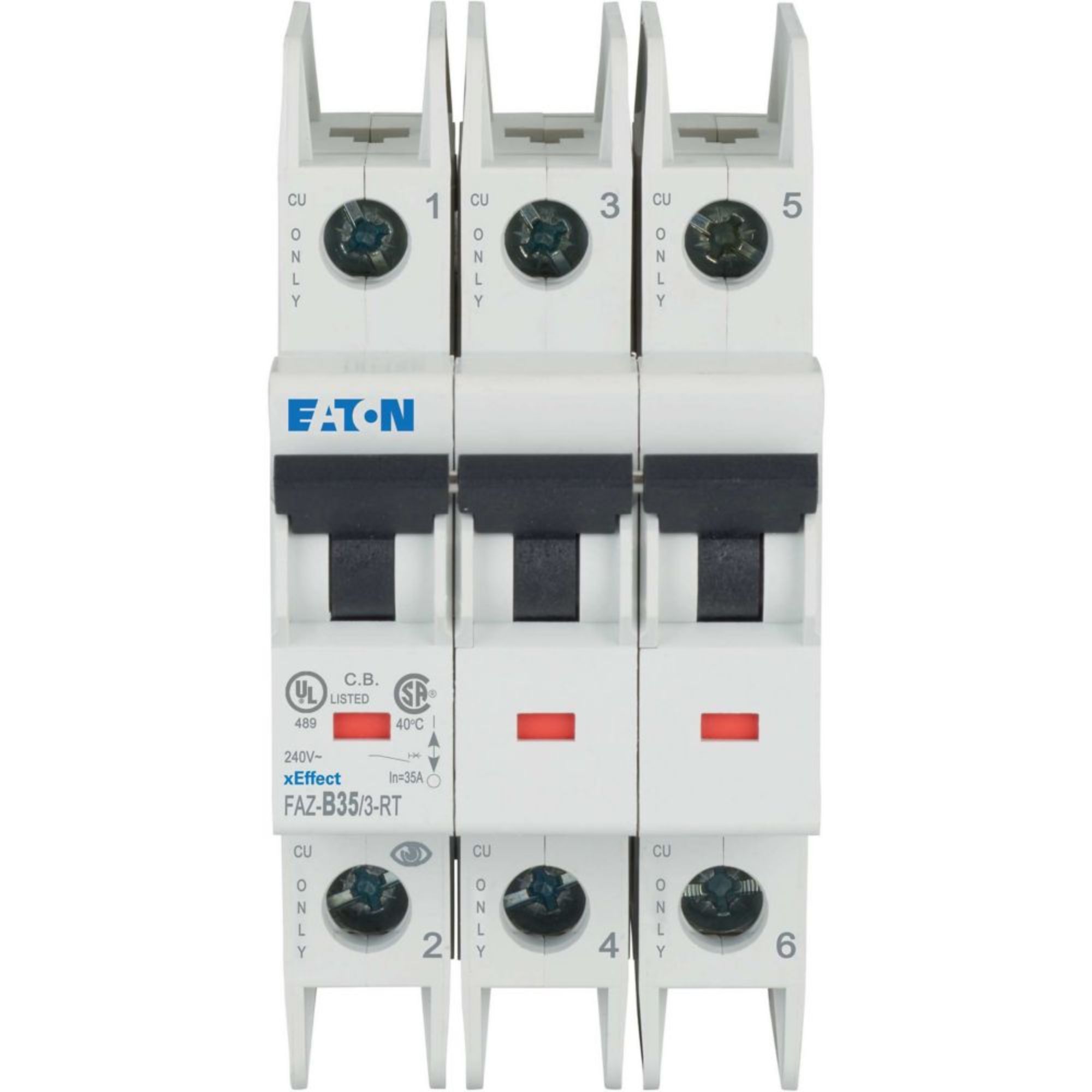

Product: Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB
Description: Eaton Moeller series xEffect – FAZ-NA, FAZ-RT MCB. FAZ-RT, 3-pole, tripping characteristic: B, rated current In: 35 A
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | FAZ-B35/3-RT |
| Catalog Number | 132786 |
| Global Catalog | 132786 |
| EAN / GTIN-13 | 4015081297351 |
| Length | 105.0 mm |
| Height | 75.5 mm |
| Width | 53.1 mm |
| Weight | 0.388 kg |
| Amperage Rating | 35 A |
| Voltage Rating (AC) | 240 V AC |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Operational Current (In) | 35 A |
| Number of Poles | Three-pole |
| Pollution Degree | 2 |
| Overvoltage Category | III |
| Degree of Protection | UL/CSA Type: – | IP20 | IP40 (when fitted) | IP20 (IEC) |
| Electrical Lifespan | 20000 operations |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 75 °C |
| Mounting Method | Top-hat rail IEC/EN 60715 |
| Application | Feeder circuits, branch circuits | Switchgear for industrial and advanced commercial applications | xEffect – Switchgear for industrial and advanced commercial applications |
| Functions | Current limiting circuit breaker |
| Special Features | Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity |
| Compliances | RoHS conform |
| Certifications | CSA (File No. 204453) | North America (UL listed, CSA certified) | UL (Category Control Number DIVQ) | IEC/EN 60947-2 | Specially designed for North America, suitable as BCPD | IEC 60947-2 | CSA-C22.2 No. 5-09 | CSA (Class No. 1432-01) | UL 489, CSA C22.2 No. 5 | UL 489 | CE marking | UL (File No. E235139) | EN45545-2 | IEC 61373 |
| Power Loss | 5.7 W |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
