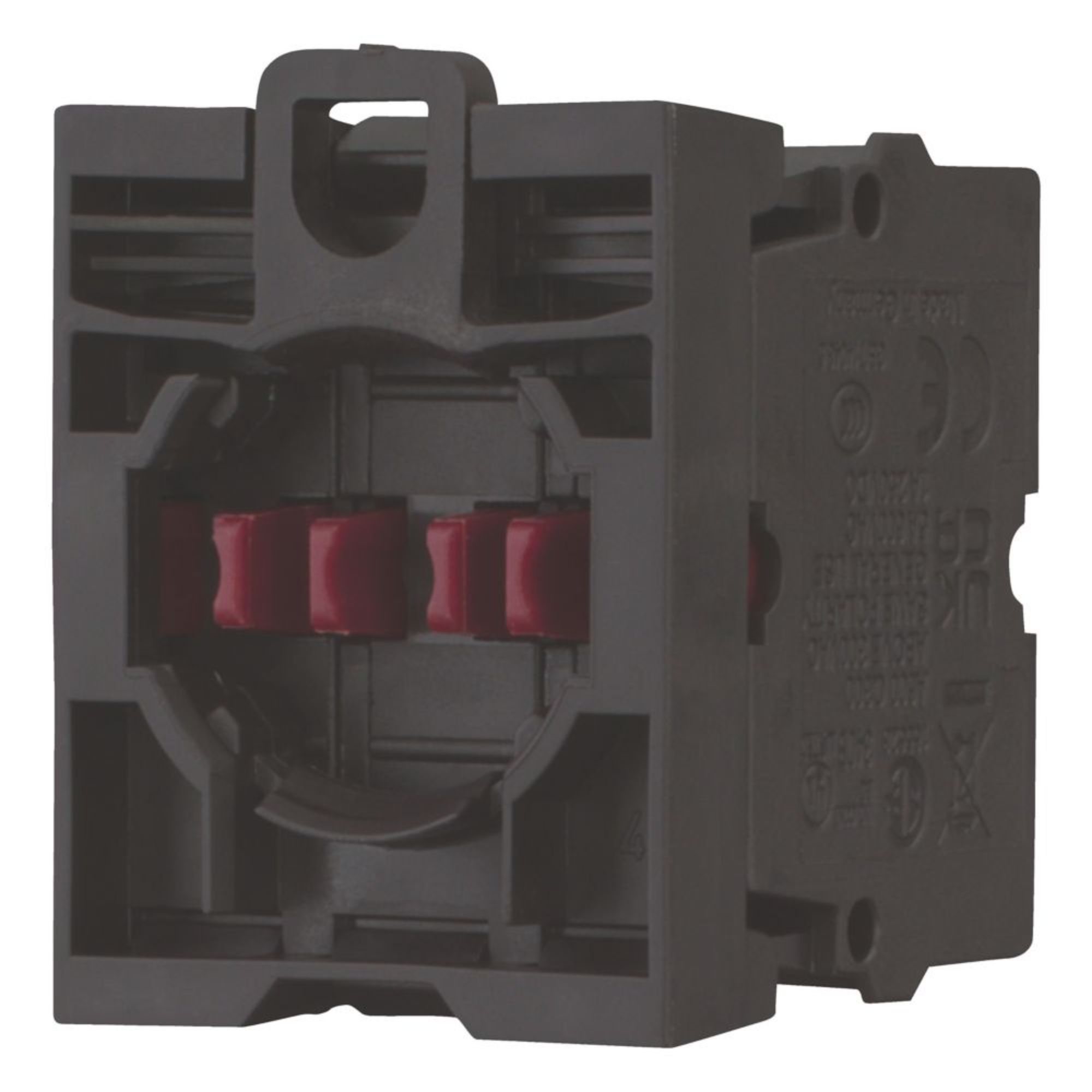

Product: Eaton Moeller® series M22 assembled contact element and mounting adapter
Description: Eaton Moeller® series M22 Combination of contact element and self-monitoring contact element M22-K01SMC10, M22-A mounting adapter, and M22-XSMC signaling contact actuator, 3 NC
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | M22-AFK03SMC10 |
| Catalog Number | 180794 |
| Global Catalog | 180794 |
| EAN / GTIN-13 | 4015081759637 |
| Length | 40.2 mm |
| Height | 32.5 mm |
| Width | 16.0 mm |
| Weight | 0.024 kg |
| Rated Insulation Voltage (Ui) | 250 V |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | IP20 |
| Mechanical Lifespan | 1,000,000 Operations (AC operated) |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 70 °C |
| Certifications | IEC 60947-5-1 |
| Operating Frequency | 3600 Operations/h |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
