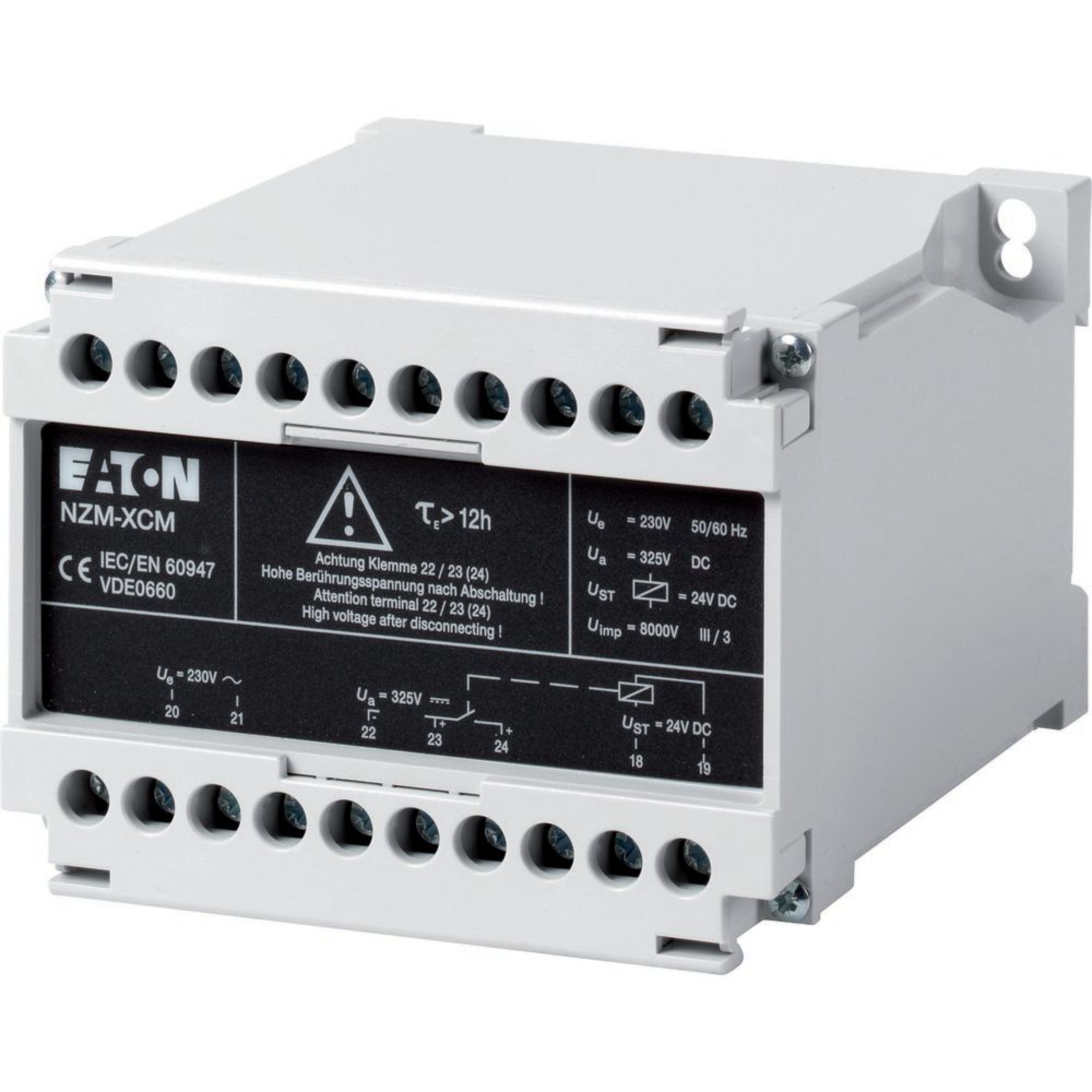

Product: Eaton Moeller series NZM Shunt release
Description: Eaton Moeller series NZM Shunt release, for capacitor unit
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | NZM-XCM |
| Catalog Number | 229413 |
| Global Catalog | 229413 |
| EAN / GTIN-13 | 4015082294137 |
| Length | 100.0 mm |
| Height | 114.0 mm |
| Width | 74.0 mm |
| Weight | 0.48 kg |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Special Features | Capacitor unit 230 V 50/60 Hz in conjunction with NZM…-XA208-250 AC/DC shunt release | Enclosure: degree of protection IP20 | not UL/CSA approved | Enables the safe use of circuit-breakers as mesh network circuit-breakers in the range from 0 – 110 % Un with constant switch-off time of 40 ms. | If the mains voltage is absent, the installed capacitor supplies power for actuating the shunt release for at least 12 hours. | The configuration of the capacitor unit is undertaken independently of the circuit-breaker. | Connect capacitor unit to the supply side! | Engineering Guidelines: Connect a standard auxiliary contact as N/O in series with the shunt release! | Standard auxiliary contact not included as standard. |
| Compliances | IEC | RoHS conform |
📄 Specifications are sourced from official manufacturer datasheets and are provided for reference only.
For the latest official information and pricing, please contact us for an authoritative quotation.
