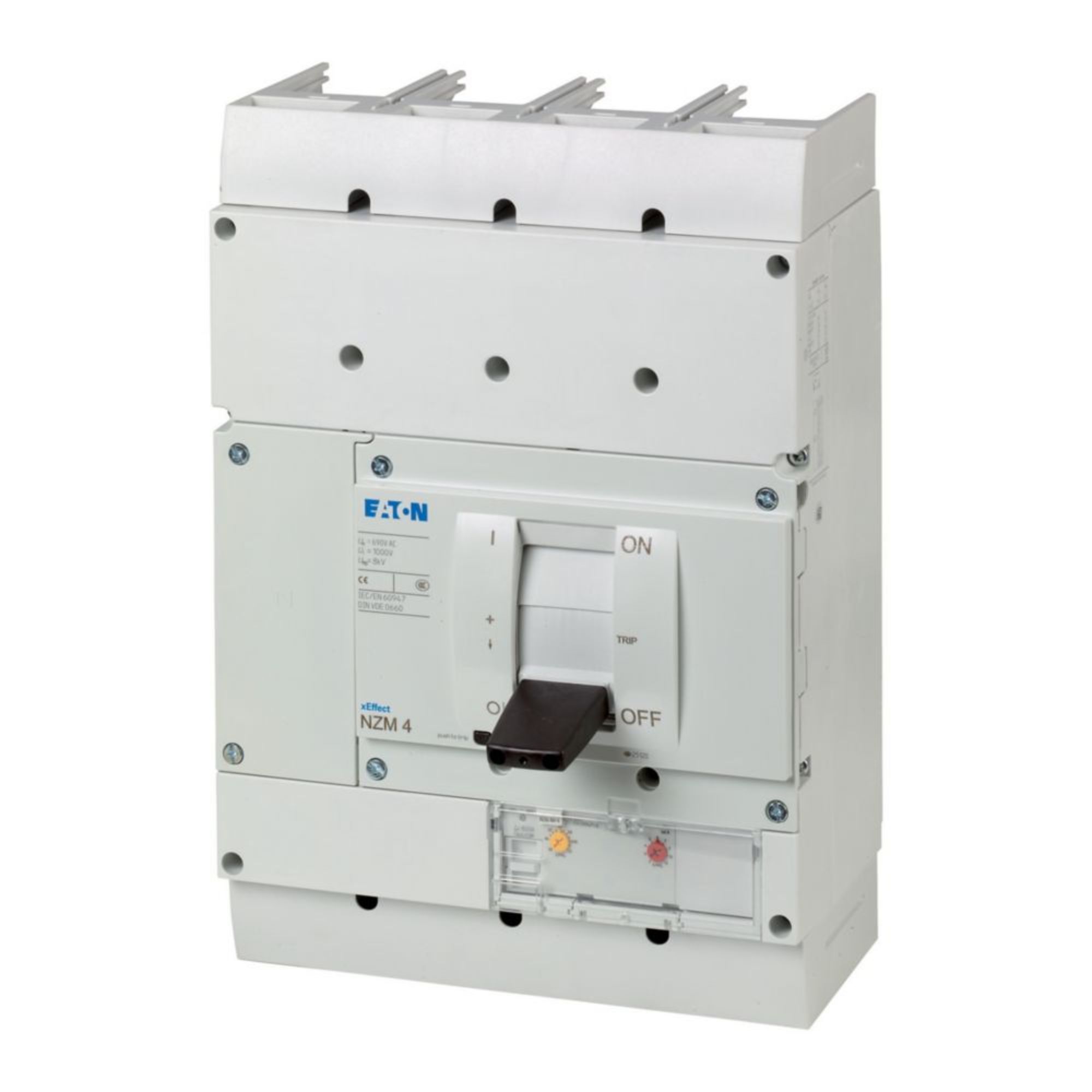

Product: Eaton Moeller series NZM molded case circuit breaker electronic
Description: Eaton Moeller series NZM – Molded Case Circuit Breaker. Circuit-breakers 4 pole 1000/630 A
📋 Detailed Specifications
| Parameter | Value |
|---|---|
| Model Code | NZML4-4-AE1000/630 |
| Catalog Number | 283225 |
| Global Catalog | 283225 |
| EAN / GTIN-13 | 4015082832254 |
| Length | 401.0 mm |
| Height | 207.0 mm |
| Width | 280.0 mm |
| Weight | 27.0 kg |
| Amperage Rating | 1000 A |
| Voltage Rating (AC) | 690 V – 690 V |
| Rated Insulation Voltage (Ui) | 1000 V AC |
| Rated Operational Current (In) | 1000 A |
| Number of Poles | Four-pole |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Degree of Protection | IP20 (basic degree of protection, in the operating controls area) | IP20 |
| Release System | Electronic release |
| Utilization Category | A (IEC/EN 60947-2) |
| Overload Setting (Ir) — min | 500 A |
| Overload Setting (Ir) — max | 1000 A |
| Instantaneous Setting (Ii) — min | 2000 A |
| Instantaneous Setting (Ii) — max | 12000 A |
| Short-circuit Release — min | 2000 A |
| Short-circuit Release — max | 12000 A |
| Short-time Withstand 0.3s | 19.2 kA |
| Short-time Withstand 1s | 19.2 kA |
| Ics @ 230 V | 63 kA |
| Ics @ 400/415 V | 50 kA |
| Ics @ 440 V | 43 kA |
| Ics @ 525 V | 49 kA |
| Ics @ 690 V | 37 kA |
| Icm @ 400/415 V | 220 kA |
| Icm @ 440 V | 187 kA |
| Icm @ 525 V | 143 kA |
| Icm @ 690 V | 105 kA |
| Uimp (main) | 8000 V |
| Uimp (auxiliary) | 6000 V |
| Mechanical Lifespan | 10000 operations |
| Electrical Lifespan | 2000 operations at 415 V AC-3 | 3000 operations at 415 V AC-1 | 1000 operations at 690 V AC-3 | 2000 operations at 690 V AC-1 | 2000 operations at 400 V AC-3 | 3000 operations at 400 V AC-1 |
| Ambient Temp — min | -25 °C |
| Ambient Temp — max | 70 °C |
| Standard Terminals | Screw terminal |
| Connection Type | Screw connection |
| Frame Type | NZM4 |
| Handle Type | Rocker lever |
| Mounting Method | Built-in device fixed built-in technique | Fixed |
| Application | Use in unearthed supply systems at 525 V |
| Functions | System and cable protection |
| Special Features | Maximum back-up fuse, if the expected short-circuit currents at the installation location exceed the switching capacity of the circuit breaker (Rated short-circuit breaking capacity Icn) | Rated current = rated uninterrupted current: 1000 A | Reduced neutral conductor protection | Set value in neutral conductor is synchronous with set value Ir of main pole. | R.m.s. value measurement and “thermal memory” |
| Compliances | RoHS conform |
| Certifications | IEC/EN 60947 | IEC |
